Opis

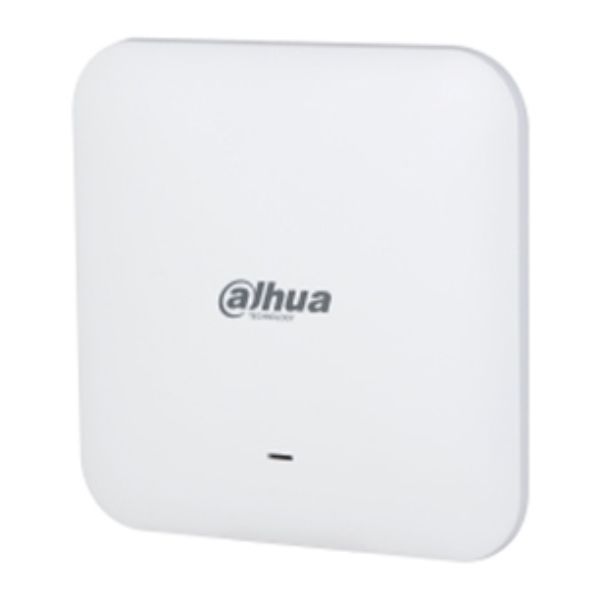

MODEL . EAP5212-CWIRELESS ACCESS POINT. 802.11AC INDOOR CEILING WIRELESS ACCESS POINT. UP TO 1.2 GBPS. DUAL BAND CONCURRENT. SEAMLESS ROAMING. MU-MIMO TECHNOLOGY DELIVERS FAST WIRELESS NETWORK FOR MULTIPLE DEVICES AT THE SAME TIME. DEVICES CAN QUICKLY ACCESS THE DOLYNK CARE PLATFORM AND BE REMOTELY MANAGED ON.SPECIFICATION : DEVICE TYPE AP. HARDWARE WAN PORT 1 ? 10/100/1000 MBPS BASE-T (POE IN). LAN PORT 1 ? 10/100/1000 MBPS BASE-T. POWER SUPPLY 12V DC,1.5A 802.3 AF POE 802.3 AT POE ANTENNA TYPE : OMNIDIRECTIONAL. BUILT-IN ANTENNA : 2.4 GHZ: 2 ? 4.6 DBI 5 GHZ: 2 ? 4.0 DBI. MEMORY DDR: 128 MB. INDICATOR LIGHT SYS WAN/POE LAN. PERFORMANCE WIRELESS STANDARD : 2.4 GHZ: IEEE 802.11B/G/N 5 GHZ: IEEE 802.11A/N/AC. WIRELESS TRANSMISSION RATE : 2.4 GHZ: 300 MBPS 5 GHZ: 867 MBPS. OPERATING FREQUENCY 2.4 GHZ: 2.400 GHZ?2.484 GHZ 5 GHZ: 5.150 GHZ?5.850GHZ. CHANNEL WIDTH : 2.4 GHZ: 20/40 MHZ 5 GHZ: 20/40/80 MHZ, 2.4 GHZ. ANTENNA GAIN : 4.6 DBI, 5 GHZ ANTENNA GAIN, 4.0 DBI. MAX. OUTPUT POWER CE EIRP: 20 DBM@2400-2483.5 MHZ 23 DBM@5150-5250 MHZ 23 DBM@5250-5350 MHZ 27 DBM@5470-5725 MHZ 14 DBM@5725-5850 MHZ. FCC OUTPUT POWER: 27 DBM@2400-2483.5 MHZ 24 DBM@5150-5250 MHZ 24 DBM@5250-5350 MHZ 24 DBM@5470-5725 MHZ 30 DBM@5725-5850 MHZ. 2.4 GHZ MAX POWER OUTPUT 20 DBM. 5 GHZ MAX POWER OUTPUT 22 DBM. RECEIVER SENSITIVITY 2.4 GHZ: 802.11B 11M: -85 DBM 802.11B 1M: -94 DBM 802.11G 54M: -72 DBM 802.11G 6M: -90 DBM 802.11N 20MHZ MCS0: -88 DBM 802.11N 20MHZ MCS7: -70 DBM 802.11N 40MHZ MCS0: -86 DBM 802.11N 40MHZ MCS7: -68 DBM 5 GHZ: 802.11A 54M: -72 DBM 802.11A 6M: -90 DBM 802.11N 20MHZ MCS0: -88 DBM 802.11N 20MHZ MCS7: -70 DBM 802.11N 40MHZ MCS0: -86 DBM 802.11N 40MHZ MCS7: -68 DBM 802.11AC 80MHZ MCS0: -85 DBM 802.11AC 80MHZ MCS9: -58 DBM. MAX. TRANSMISSION DISTANCE 20 M (65.62 FT). OPTIMAL TRANSMISSION DISTANCE 15 M (49.21 FT). SSID NUMBER . 2.4 GHZ: 4 5 GHZ: 4. CONNECTED WIRELESS TERMINALS 2.4 GHZ: 50 5 GHZ: 50. POE IN: 802.3AF (15 W/30 W). FUNCTION EQUIPMENT MANAGEMENT WEB PLATFORM APP. N
