Opis

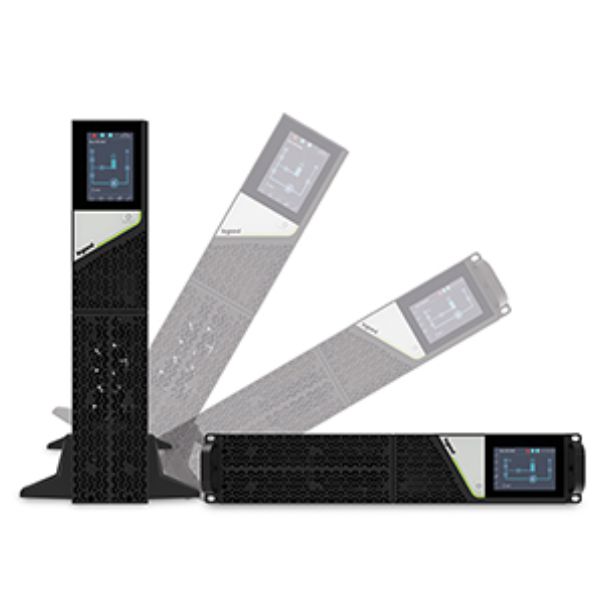

MODEL : 311349THE LEGRAND UPS MODEL KEOR DK IS AN UNINTERRUPTIBLE POWER SOURCE WITH HIGH FREQUENCY PWM TECHNOLOGY, DOUBLE CONVERSION ON-LINE, SOLID NEUTRAL, RATED POWER 5000 AND 6000 VA, PF 1. EQUIPPED WITH VALVE REGULATED, HERMETICALLY-SEALED ACCUMULATOR BATTERIES, CONTAINED IN A SPECIFIC COMPARTMENT INSIDE THE UPS OR IN ONE OR MORE EXTERNAL CABINETS. THE ELECTRONICS AND BATTERIES ARE CONTAINED IN JUST 4 RACK UNITS. CONVERTIBLE RACK / TOWER.SPECIFICATION : NOMINAL POWER [KVA] 6000-6000, ACTIVE POWER [KW] 5000-5000, TECHNOLOGY ON-LINE DOUBLE CONVERSION VFI-SS-11, WAVEFORM SINUSOIDAL, UPS ARCHITECTURE CONVERTIBLE TOWER AND RACK 19??, EFFICIENCY (AC-AC) 95%, ECO MODE EFFICIENCY 99%, NPUT VOLTAGE [V] 230, INPUT FREQUENCY [HZ] 50/60, INPUT VOLTAGE RANGE 176-280, THD INPUT CURRENT ?5, INPUT POWER FACTOR >0.99, INPUT CONNECTION TERMINAL STRIPS, OUTPUT VOLTAGE [V] 230 V ? 1%, OUTPUT FREQUENCY (NOMINAL) 50/60 HZ +/- 0.1%, CREST FACTOR 3:1, THD OUTPUT VOLTAGE < 3% WITH LINEAR LOAD, OUTPUT VOLTAGE TOLERANCE ?1%, BYPASS STATIC BYPASS SWITCH , OUTLET 8 X10A, IEC 320-C13+ 2 X 16A IEC 320, C19 + TERMINAL STRIPS, UPTIME EXPANSION YES, NUMBER OF BATTERIES 20, BATTERY SERIES TYPE/VOLTAGE 12V 5AH, RECHARGE TIME (TO 90%) 4 HOURS (4A CHARGING CURRENT), BATTERY DISCONNECTOR FOR SAFE TRANSPORTATION YES, DISPLAY AND SIGNALS TRUE-COLOR TOUCH-PANEL 3.5?? WITH LED STATUS BAR, COMMUNICATION PORTS RS232, USB, 3 DRY-CONTACT, EPO, ROO, REMOTE MANAGEMENT AVAILABLE, NETWORK INTERFACE SLOT SNMP, PARALLEL MODE YES, GEN SET MODE YES, OPERATING TEMPERATURE [?C] 0 ? 40 ?C DEGREE OF PROTECTION IP20, RELATIVE HUMIDITY [%] 0-95% NON-CONDENSING, NOISE LEVEL AT 1 M [DBA] <50, HEAT LOSS [BTU/H] 1005, MAXIMUM ALTITUDE WITHOUT DERATING [M ABOVE THE SEA LEVEL] 0 TO +2,000 M STANDARDS AND REGULATIONS : THE UPS KEOR DK HAS THE CE MARK ACCORDINGLY WITH THE EU DIRECTIVES 2006 95 2004 108 AND IT COMPLY WITH FOLLOWING STANDARDS- EN 62040-1: GENERAL RULES FOR ELECTRIC SAFETY- EN 62040-2: ELECTROMAGNETIC COMPATIB
