Opis

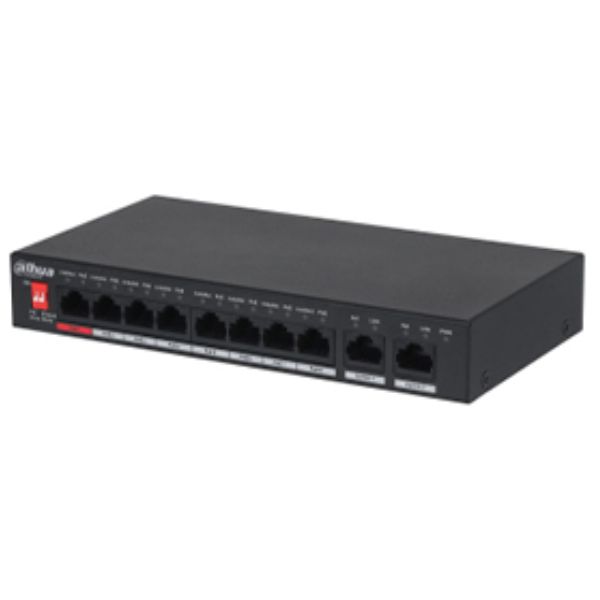

PFS3010-8ET-96-V210-PORT UNMANAGED DESKTOP SWITCH WITH 8 PORT POE. THE PARAMETERS AND DATASHEETS BELOW CAN ONLY BE APPLIED TO V2.0 (VERSION 2.0). INTELLIGENT POE, BT 90W, 8-PIN ASSIGNMENT POE POWER SUPPLY, LONG DISTANCE POE, POE WATCHDOG, WIDE WORKING TEMPERATURE.SPECIFICATION : DATA TRANSMISSION PORT PORT 1?8: 8 ? RJ-45 10/100 MBPS (POE), PORT 9-10: 2 ? RJ-45 10/100/1000 MBPS (UPLINK). POWER SUPPLY 48 V – 57 V DC. OPERAING TEMPERATURE ?10 ?C TO +55 ?C (+14?F TO +131?F). OPERATING HUMIDITY 5% ? 95% (RH). STORAGE TEMPERATURE ?20 ?C TO +70 ?C (?4?F TO +158?F). STORAGE HUMIDITY 5% ? 95% (RH). POWER CONSUMPTION : IDLING: 3 W, FULL LOAD: 96 W. PERFORMANCE SWITCHING CAPACITY 5.60 GBPS. PACKET FORWARDING RATE 4.17 MPPS. PACKET BUFFER MEMORY 4 MBIT. MAC TABLE SIZE 8K. COMMUNICATION STANDARD IEEE802.3/IEEE802.3U/IEEE 802.3AB/IEEE802.3X, POE STANDARD IEEE802.3AF IEEE802.3AT HI-POE IEEE802.3BT. POE POWER PORT 1 90 W, PORT 2-8 30 W, TOTAL 96 W. POWER CONSUMPTION MANAGEMENT YES. POE PIN ASSIGNMENT 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-). LONG DISTANCE POE 250 M LONG DISTANCE POE TRANSMISSION. POE WATCHDOG YES. GENERAL STATICS PROTECTION : AIR DISCHARGE: 8 KV, CONTACT DISCHARGE: 6 KV. THUNDER-PROOF : COMMON MODE: 4 KV, DIFFERENTIAL MODE: 2 KV. NET WEIGHT 0.50 KG (1.10 LB), GROSS WEIGHT 1.32 KG (2.91 LB). PRODUCT DIMENSIONS 190 MM ? 100 MM ? 30 MM (7.48” ? 3.94” ? 1.18”). TRANSMISSION PERFORMANCE: SWITCH POWER SUPPLY VOLTAGE 53V. CAT5E/CAT6. MAX. DC RESISTANCE < 10 /100 M
