Opis

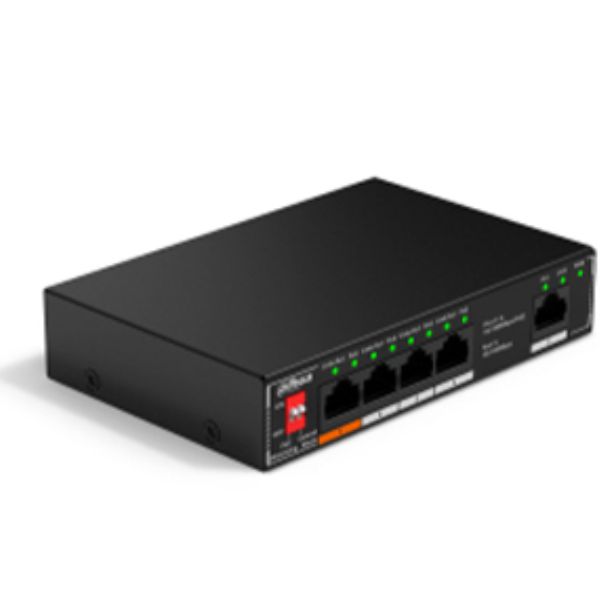

MODEL : SF1005P5-PORT UNMANAGED DESKTOP SWITCH WITH 4-PORT POE. THE PARAMETERS AND DATASHEETS BELOW CAN ONLY BE APPLIED TO V2.0 (VERSION 2.0), INTELLIGENT POE, HI-POE 60W (ORANGE PORT), 8-PIN ASSIGNMENT POE POWER SUPPLY, LONG DISTANCE POE, POE WATCHDOG, WIDE WORKING TEMPERATURESPECIFICATION : ETHERNET PORT PORT 1-4: 4 ? RJ-45 10/100MBPS(POE) + PORT 5: 1 ? RJ-45 10/100MBPS(UPLINK), POE POWER CONSUMPTION, PORT 1 ? 60 W (HI-POE), PORT 2-4 ? 30 W, TOTAL ? 60 W, POWER CONSUMPTION : IDLING: 0.8 W, FULL LOAD: 60 W. STANDARD IEEE802.3, IEEE802.3U, IEEE802.3X, POE PROTOCOL IEEE802.3AF/ IEEE802.3AT/ HI-POE, POWER SUPPLY PIN 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-), LONG DISTANCE 250 M LONG DISTANCE POE TRANSMISSION, POE POWER MANAGEMENT YES, POE WATCHDOG YES, PERFORMANCE SWITCHING CAPACITY 1.8 GBPS, PACKET FORWARDING RATE 744 KBPS, PACKET BUFFER MEMORY 1 MBIT, FLOW CONTROL ENABLE BY DEFAULT, WORKING TEMPERATURE ?10 ?C TO +55 ?C (+14 ?F TO +131 ?F), APPLICATION HUMIDITY 5%? 95% (RH), GENERAL POWER INPUT 48 V – 57 V DC, LIGHTING PROTECTION COMMON MODE: 4 KV, DIFFERENTIAL MODE: 2 KV ESD PROTECTION, AIR DISCHARGE: 8 KV, CONTACT DISCHARGE: 6 KV, WALL-MOUNT INSTALLATION YES, ANTI-THEFT LOCK HOLE YES, WEIGHT 0.30 KG (0.64 LB), DIMENSION 130 MM ? 85 MM ? 26 MM (5.12” ? 3.35” ? 1.02”)
