Opis

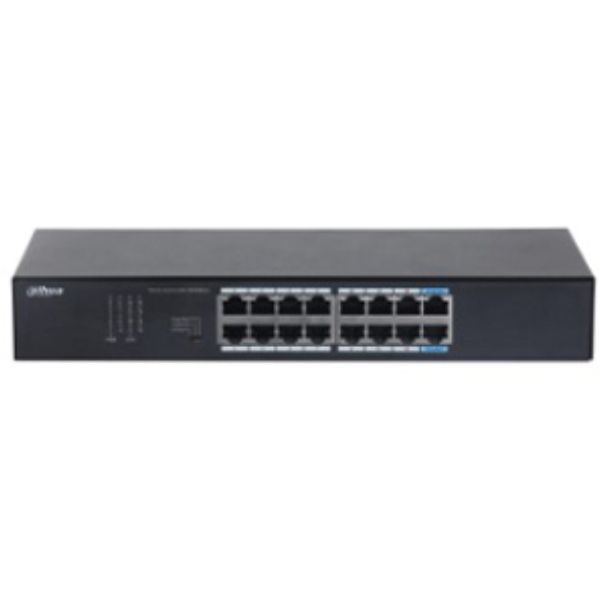

MODEL : S3016-16GT16-PORT UNMANAGED GIGABIT SWITCH, 16 ? RJ-45 10/100/1000 PORTS. THE ALL-GIGABIT PORTS TRANSMIT DATA WITHOUT LAG. FEATURES AGGREGATION MODE WHICH AGGREGATES UPLINK PORTS. FEATURES ISOLATION MODE WHICH ISOLATES ALL THE PORTS FROM EACH OTHER. WITH ITS SOLID FULL METAL DESIGN, THE DEVICE HAS GREAT HEAT DISSIPATION AND NO FAN. SUPPORTS RACK MOUNT, WALL MOUNT AND DESKTOP MOUNT.SPECIFICATION : LAYER LAYER 2, SWITCHING CAPACITY 32 GBPS, PACKET FORWARDING RATE 23.808 MPPS, DESCRIPTION OF FUNCTION SLOTS PORT 1-14: 14 ? RJ-45 10/100/1000 MBPS PORT 15-16: 2 ? RJ-45 10/100/1000 MBPS (UPLINK), OPERATING TEMPERATURE ?10 ?C TO +55 ?C (+14 ?F TO +131 ?F), OPERATING HUMIDITY 10%?90% (RH), NON-CONDENSING, STORAGE TEMPERATURE ?40 ?C TO +70 ?C (?40 ?F TO +158 ?F), STORAGE HUMIDITY 5%?95% (RH), NON-CONDENSING, POWER SUPPLY BUILT IN POWER SUPPLY: 100?240 VAC, 50/60 HZ, 0.4 A, POWER CONSUMPTION IDLING: 2.2 W FULL LOAD: 7.8 W, STATICS PROTECTION AIR DISCHARGE: 8 KV CONTACT DISCHARGE: 6 KV, LIGHTNING PROTECTION COMMON MODE: 2 KV DIFFERENTIAL MODE: 0.5 KV, NET WEIGHT 0.74 KG (1.63 LB), GROSS WEIGHT 1.297 KG (2.86 LB), PRODUCT DIMENSIONS 294 MM ? 119 MM ? 44 MM (11.57” ? 4.68” ? 1.73”) (L ? W ? H), PACKAGING DIMENSIONS 353 MM ? 215 MM ? 75 MM (13.9” ? 8.46” ? 2.95”) (L ? W ? H), CASING MATERIAL SHEET METAL, INSTALLATION DESKTOP MOUNT WALL MOUNT RACK MOUNT, CERTIFICATIONS CE, HARDWARE DIP SWITCH, DEFAULT: DEFAULT SETTING POST ISOLATION: PREVENTS TRAFFIC FROM BEING SENT BETWEEN PORTS 1-14, BUT ALLOWS PORTS 1-14 TO SEND ITS TRAFFIC TO THE UPLINK PORTS 15-16. THESE UPLINK PORTS CAN ALSO SEND THEIR TRAFFIC TO 1-14. PORT AGGREGATION: AGGREGATES UPLINK PORTS. PERFORMANCE PACKET BUFFER SIZE .4 MBIT, JUMBO FRAME 12K BYTE, MAC TABLE SIZE 16K, COMMUNICATION STANDARD IEEE 802.3 IEEE 802.3U IEEE 802.3X IEEE 802.3AB IEEE 802.3AD, FEATURE LINK AGGREGATION, STATIC LINK AGGREGATION PORT FEATURE IEEE 802.3X TRAFFIC CONTROL, IEEE 802.3X FLOW CONTROL. PACKING LIST : 1 ? USER MANUAL 1 ? LEGAL AN
