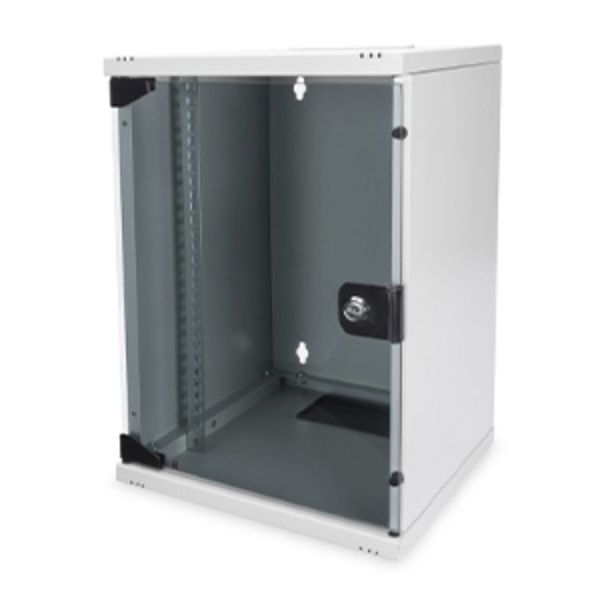

RACK ORMAR 9HE 464X312X300 SIVI TEHNOX TN-10-09U

Opis

MODEL : TN-10-09UTHE 254 MM (10?) WALL MOUNTING CABINETS ARE MADE OF A ROBUST STEEL SHEET CONSTRUCTION. CABLE ENTRY OPENINGS ON TOP AND BASE SIDE PROVIDE THE BEST POSSIBILITIES FOR CABLE MANAGEMENT IN A COMPACT AREA. WITH ITS OVERALL COMPACT DESIGN THIS ENCLOSURE IS IDEAL FOR CURRENT IT AND TELECOMMUNICATION APPLICATIONS, ESPECIALLY IN NARROW AREAS OR PRIVATE HOUSEHOLDS. FRONT DOOR TEMPER GLASS WITH SMALL ROUND LOCK , SIDE QUICK OPEN PANEL , REAR WITH INSTALLATION PANEL , TOP AND BOTTOM WITH CABLE ENTRY , FRONT DOOR AND FRAME CONNECTED WITH EARTH CABLE. , THICKNESS: RAILS 1.5MM, OTHERS 1.2MM , COLOR: GREY (RAL7032), 254 MM (10″) 9U WALL MOUNTING CABINET 464X312X300 MM, COLOR GREY (RAL 7035)TECHNICAL DETAILS : SAFETY CLASS RATING IP20, LOCKABLE SAFETY-GLASS DOOR, 200? DOOR OPENING ANGLE, 1-POINT-LOCKING-MECHANISM ON THE FRONT DOOR, 254 MM (10″) PROFILE RAILS MOUNTED ON THE FRONT SIDE INSIDE OF THE CABINET, GALVANIZED, 254 MM (10″) PROFILE RAILS ARE ADJUSTABLE IN DEPTH, 1.1 – 1.5 STRONG SHEET STEEL WITH A HIGH LOADING CAPACITY, POWDER COATED, CABLE ENTRY WITH BRUSH STRIP ON THE TOP AND WITH PLASTIC COVER ON THE BASE, VENTILATION SLOTS FOR ACTIVE AND PASSIVE VENTILATION AND EXHAUSTING, EQUIPMENT MOUNTING DEPTH MAX.: 240 MM, CABINET TYPE: WALL MOUNTING CABINET, COLOR: LIGHT GREY, RAL 7035, DEPTH: 300 MM, FRONT DOOR: GLASS DOOR, LOAD CAPACITY: 30 KG, UNITS: 9, WIDTH: 312 MM, IP PROTECTION CLASS: IP20, MOUNTED: YES. TEHNOX
