Opis

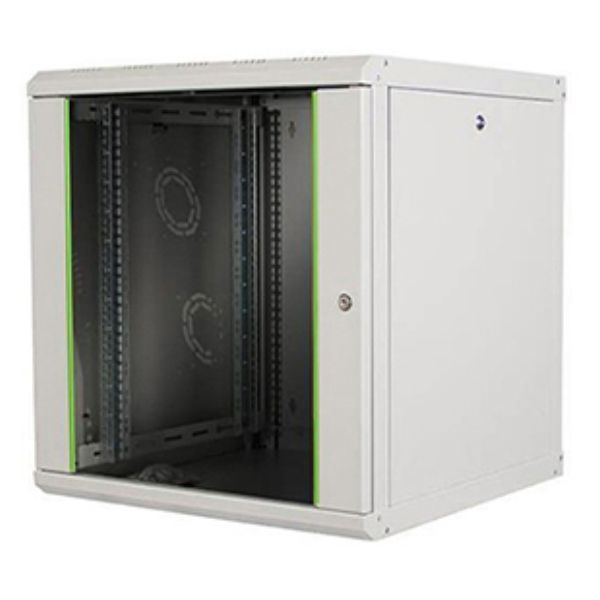

MODEL: TN-19-16UTECHNICAL DETAILS : SAFETY CLASS RATING IP20, LOCKABLE SAFETY-GLASS DOOR WITH STEEL FRAME, 210? DOOR OPENING ANGLE, 1-POINT-LOCKING-MECHANISM ON THE FRONT DOOR, 483 MM (19”) PROFILE RAILS ARE ADJUSTABLE IN DEPTH AND WITH HEIGHT UNIT MARKING, 483 MM (19”) PROFILE RAILS MOUNTED ON THE FRONT- AND REAR SIDE INSIDE OF THE CABINET, GALVANIZED, 0.8 – 1.2 MM STRONG SHEET STEEL WITH HIGH LOAD CAPACITY, POWDER COATED, ROOF IS PREPARED FOR FAN UNITS (PUNCHED OUT ENTRIES), VENTILATION SLOTS FOR ACTIVE AND PASSIVE VENTILATION AND EXHAUSTING, 3 EARTHING POINTS (BASE, SIDE PANEL AND FRONT DOOR), MOUNTING LEVEL: FRONT SIDE, TYPE OF PROFILE RAIL: L-SHAPED, NUMBER OF DOORS: 1, TYPE OF VENTILATION: PASSIVE, WIDTH: 600 MM, HEIGHT: 816.2 MM, DEPTH: 450 MM, MODULAR SPACING: 482.6 MM (19 INCH), NUMBER OF HEIGHT UNITS: 16, WITH ROOF PLATE: YES, WITH FRONT DOOR: YES, WITH SIDEWALL: YES, MATERIAL: STEEL, TYPE OF SURFACE: WITH POWDER COATING, COLOUR: GREY, MODEL: WITH PERMANENT FRAME, RAL-NUMBER: 7035, , DEGREE OF PROTECTION (IP):
