Opis

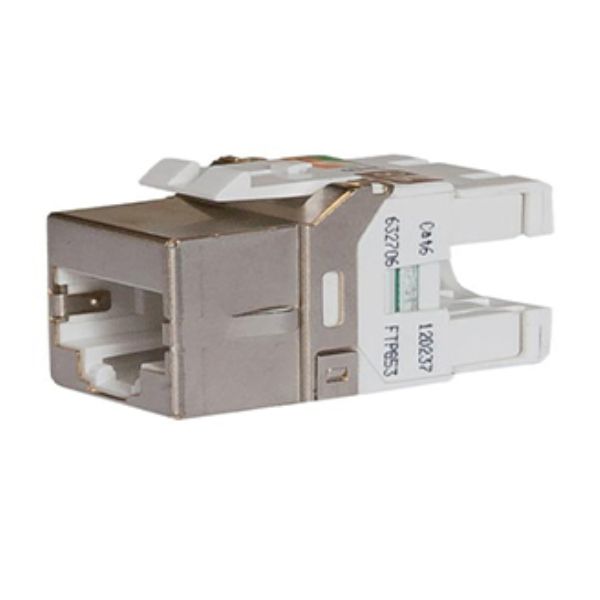

MODEL : 632706LEGRAND LINKEO CAT 6 KEYSTONE JACK, SHIELDED 250 MHZ ACC. ISO/IEC 11801:2002 AM2:2009/09, TOOL FREE CONNECTION. QUICK AND SAFE WIRE TERMINATIONS WITHOUT ANY SPECIAL TOOL. THE ITEM “DN-93612-1″ OF THE BRAND LEGRAND LINKEO IS A SHIELDED CAT 6 KEYSTONE MODULE WITH TOOL FREE INSTALLATION WHICH PROVIDES BEST PERFORMANCE AND LINK QUALITY FOR YOUR NETWORK. THE COMPACT DESIGN ALLOWS THE INSTALLATION OF 24 PIECES IN A ROW OF 483 MM (19”) 1U PANELS. IT IS CONFORM TO CATEGORY 6A / 10GBASE-T CHANNEL, ANSI/EIA/TIA 568C.2.1 :2002, ISO/IEC 11801:2002.TECHNICAL DETAILS : TRANSMISSION PROPERTIES: CATEGORY 6, CLASS E, AREA OF APPLICATION: UP TO 250 MHZ, 1GBASE-T, NORMS: ISO/IEC 11801 3RD ED., EN 50173-1, EIA/TIA 568-CGENERAL PROPERTIES: SUITABLE FOR PATCH PANELS AND MOUNTING OUTLETS, RJ45 FEMALE, 8P8C, CABLE INSTALLATION VIA LSA STRIPS, COLOR CODED ACCORDING TO EIA/TIA 568 A & B, CABLE FIXING WITH CABLE TIE, TOOL-FREE INSTALLATION, 360? SHIELD COVERAGETECHNICAL PROPERTIES: HOUSING MATERIAL: ZINC DIE-CAST, NICKEL-PLATED, RJ45 FEMALE MATERIAL: ABS UL 94V-0, RJ45 FEMALE CONTACT: TINNED PHOSPHOR BRONZE, 0.5 ? GOLD-PLATED CONTACT, RJ45 SHIELDING: TINNED BRONZE, LSA TERMINATION CLAMP: KRONE LSA+, UL 94V-2, ZINC PLATED PHOSPHOR BRONZE, CONDUCTOR PLATE: FR4, UL 94V-0PHYSICAL PROPERTIES: INSERTION FORCE: 30N MAX. (IEC 60603-7-5), RETENTION STRENGTH: 7.7 KG BETWEEN JACK AND PLUG, OPERATION TEMPERATURE: -20? C TO +70 ?C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C), MATING CYCLES FEMALE: > 750 ACC. TO ISO/IEC 11801, IEC 60603-7-5, CLAMP: > 200 ACC. TO ISO/IEC 11801, IEC 60603-7-5, IDC WIRE SIZE: 22 ? 26, AWG SOLID AND STRANDED CONDUCTOR, INSULATION RESISTANCE: > 500 MOHM, CONTACT RESISTANCE: < 20 MILLIOHM, DIELECTRIC STRENGTH: 1000 VDC (CONTACT/CONTACT), 1500 VDC (CONTACT/GROUND), MODEL: BUS (JACK), TYPE OF CONNECTOR: RJ45 8(8), SCREENED: YES, CATEGORY: 6, CONNECTION TYPE: LSA, SPECIAL TOOL NECESSARY: NO, SUITABLE FOR ROUND CABLE: YES, SUITABLE FOR, FLAT CABLE: YES, SUITABLE FO
