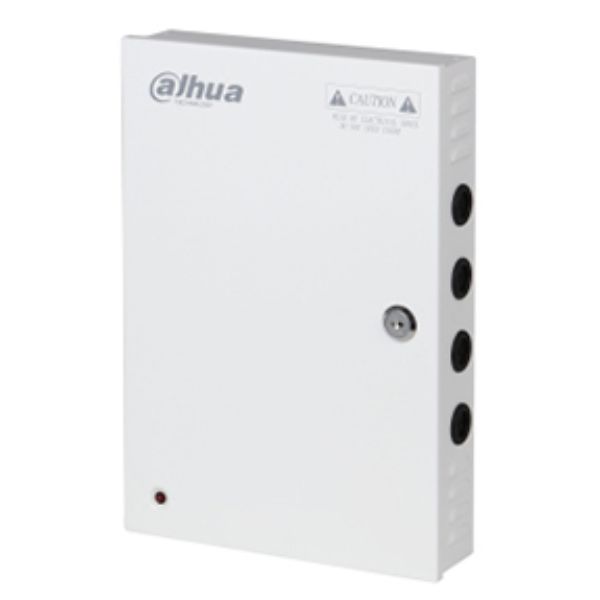

MODEL : PFM343-19CHCCTV DISTRIBUTED POWER SUPPLY BOX. 19 CHANNEL SECURITY CAMERA POWER SUPPLY DISTRIBUTION BOX WITH INDIVIDUAL LED OUTPUT INDICATOR AND METAL CASE BY LOCK KEY TO PREVENT UNAUTHORIZED ACCESS. WIDE VOLTAGE INPUT: AC90~264VAC, MEET THE REQUIREMENTS IN DIFFERENT PARTS FOR ELECTRIC NETWORK FLUCTUATION. HIGH QUALITY AND RELIABILITY: PASS 100% QUALITY EXAMINATION AND 3 MONTHS HIGH TEMPERATURE AGING TEST. WITH OVERLOAD PROTECTION, OVER-CURRENT PROTECTION, OVER-VOLTAGE PROTECTION, ANTI-STATIC AND ANTI-INTERFERENCE ABILITY. PROFESSIONAL WALL-MOUNTED INSTALLATION WITH RESERVED OUTLET HOLES, CONVENIENT AND FLEXIBLE.SPECIFICATION : INPUT VOLTAGE RANGE AC90~264V, OUTPUTS 19 X 12VDC (-3%~+7%) OUTPUTS, MAX. OUTPUT 20A, 240W, OUTPUT PROTECTION 19 REPLACEMENT FUSES, MAX. PER OUTPUT 3A, EFFICIENCY 87%, NO LOAD POWER CONSUMPTION <0.21W, INTERNAL ON/OFF POWER SWITCH YES, INDIVIDUAL LED OUTPUT INDICATOR YES, PROTECTION/ENVIRONMENTAL SURGE PROTECTED, LINE TO GROUND: 4000V, LINE TO LINE: 2000V, ESD, CONTACT DISCHARGE: 6000V, AIR DISCHARGE: 8000V, WORKING TEMPERATURE -20?~+45?(-4?~+113?), WORKING HUMIDITY <90% RH, PHYSICAL PROPERTIES, WEIGHT 2.52KG(5.56LB), DIMENSION(LXWXH) 315MMX215MMX53MM (12.4?X8.46?X2.09?), INSTALLATION, WALL MOUNT, COLOR WHITE, SAFETY STANDARDS CERTIFICATION CE(EN55032, EN55020), FCC(FCC PART 15 CLASS B, ISED ICES-003 ISSUE 6)
